Initial work has commenced on the upcoming reconstruction of the CTA State and Lake station in The Loop. Located next to the famed Chicago Theatre, the popular station serves as a connection to all lines except the Yellow and Blue Lines—the latter of which is just one block away. Plans for the station were announced in 2021 and have been in development since.

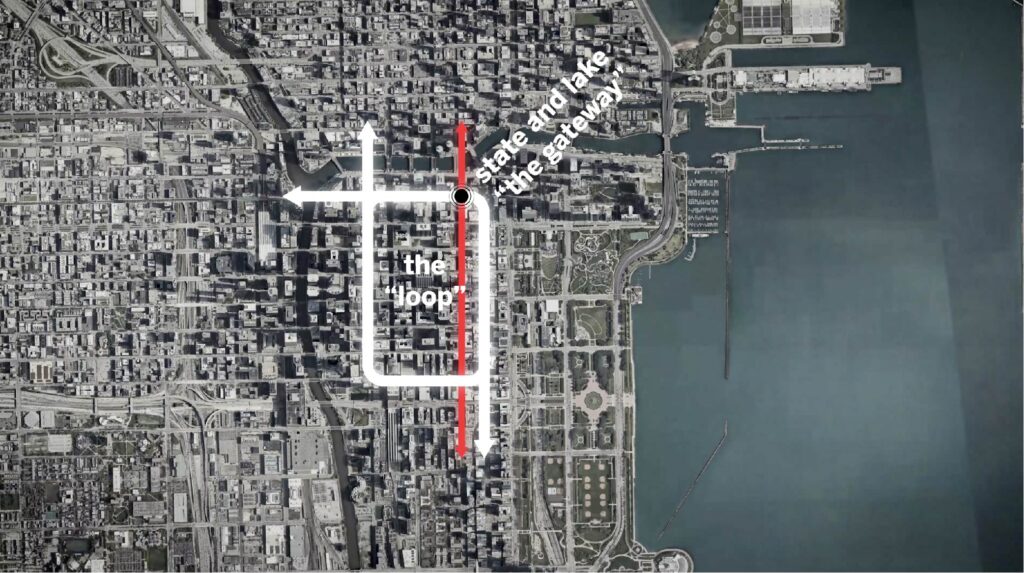

Site context map of CTA State/Lake station by SOM
Rendering of CTA State/Lake station by SOM
Led by the CTA and the Chicago Department of Transportation (CDOT), the project follows the recent completion of the Damen Green Line station, the opening of Red Line North Branch stations, and ongoing design efforts for the Red Line extension. However, the CTA currently faces a budget shortfall of over $700 million, which could result in significant service cuts.
Rendering of CTA State/Lake station by SOM
View of Rebuilt State/Lake CTA L Station. Rendering by SOM
The existing station, over 100 years old, suffers from a lack of accessibility, narrow platforms, outdated facilities, and no proper connection to the Red Line—despite being the second-busiest station in the system. To address these issues, the CTA has partnered with SOM to create a new gateway for The Loop, designed to frame views of the city.

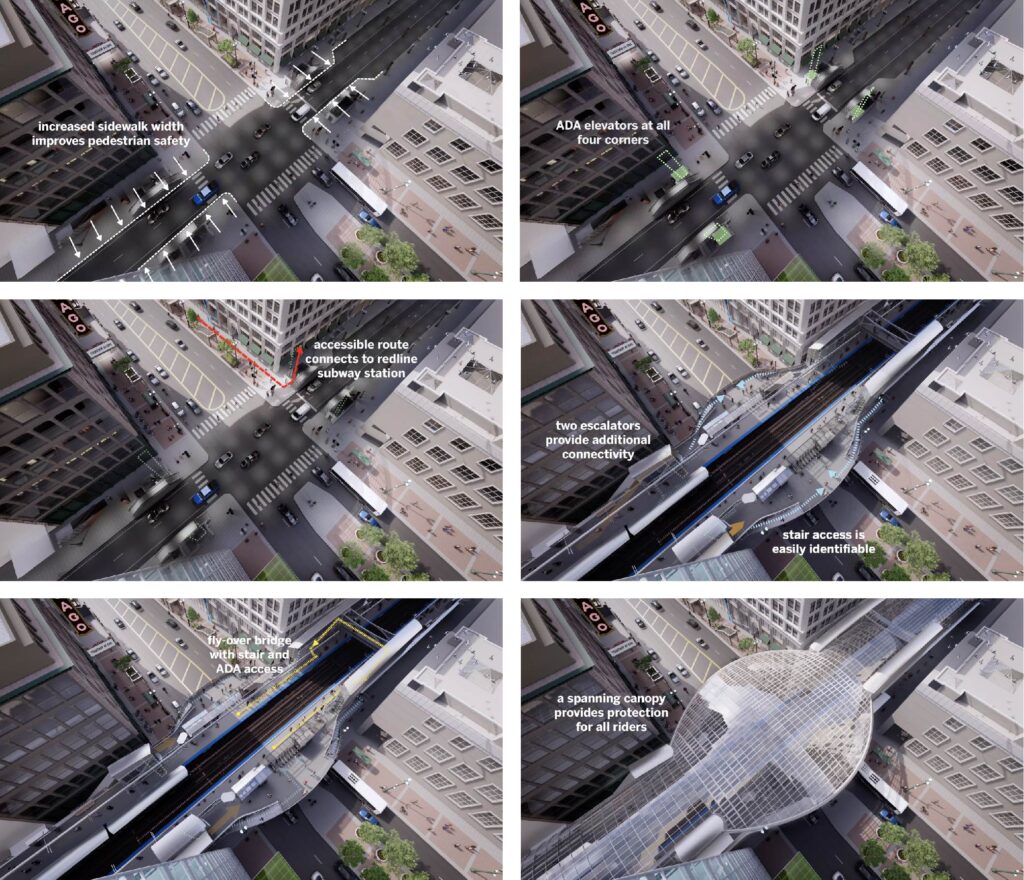

Diagram of CTA State/Lake station by SOM
Work will begin with sidewalk expansions along Lake Street to improve pedestrian safety. Following that, four new elevators will be installed at each street corner, along with two escalators and additional stairs. The redesigned station will feature widened platforms, new flyover connections between platforms, improved lighting, and a massive glass canopy that will envelop the entire structure.
Rendering of CTA State/Lake station by SOM
Aerial View of Rebuilt State/Lake CTA L Station. Rendering by SOM
Advanced utility work is set to begin next week, reducing Lake Street to one lane. A week later, State Street will also be reduced to one lane in each direction, with both restrictions lasting three to four months. Eventually, the station will fully close to allow for major construction, though no closure date has been announced yet.
View of Rebuilt State/Lake CTA L Station. Rendering by SOM
Rendering of CTA State/Lake station by SOM
When first announced in 2021, the project was estimated to cost $180 million, a figure that has likely increased. Completion is scheduled for 2029. Further information and construction updates can be found on the project’s new website found here.
